What are the components of PCB quotation?

PCB Quotation Guide

In the realm of electronic product development, Printed Circuit Boards (PCBs) are the foundational components that enable the functionality of modern electronics. Whether you're a startup developing a new consumer device or an established manufacturer scaling production, understanding the components of a PCB quotation is essential for effective cost management and project planning. A clear breakdown of PCB costs helps you make informed decisions, optimize your design for cost efficiency, and ensure that your project stays within budget.

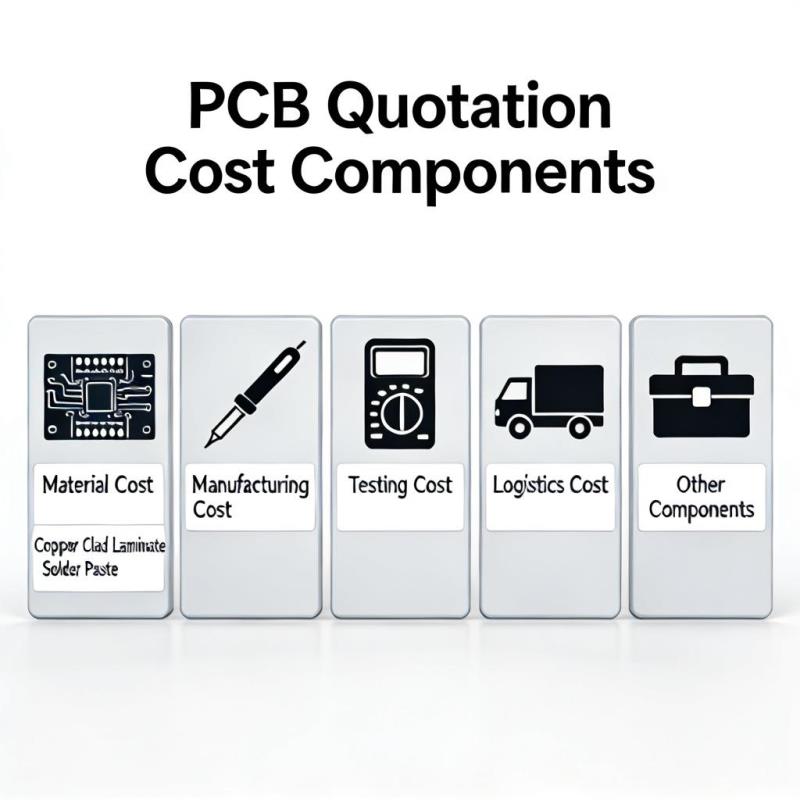

Key Components of PCB Quotation

A comprehensive PCB quotation typically includes several key cost components, each contributing to the final price of the board. These components can be categorized into material costs, manufacturing costs, testing costs, logistics costs, and additional service costs.

1. Material Costs

The material cost is a significant portion of the PCB quotation, accounting for 30-40% of the total cost. This includes the cost of the substrate material, copper foil, solder mask, silkscreen ink, and other materials used in the PCB manufacturing process.

• Substrate Material: The most common substrate material is FR-4, a fiberglass-reinforced epoxy resin that offers excellent mechanical strength and electrical insulation properties. Other substrate materials include aluminum-based substrates for high-power applications, flexible substrates like Kapton for bendable PCBs, and high-frequency substrates for RF applications. The cost of the substrate depends on the material type, thickness, and size of the PCB.

• Copper Foil: Copper foil is used to create the conductive traces on the PCB. The thickness of the copper foil (measured in ounces per square foot) affects the cost, with thicker copper foil costing more. Common copper thicknesses include 1 oz, 2 oz, and 3 oz, with thicker copper used for high-current applications.

• Solder Mask: The solder mask is a protective coating that covers the copper traces, preventing solder bridging and corrosion. The cost of the solder mask depends on the color and type, with standard green solder mask being the most cost-effective, while custom colors or high-temperature solder masks costing more.

• Silkscreen Ink: The silkscreen layer is used to print labels, component reference designators, and other markings on the PCB. The cost of the silkscreen ink depends on the color and type, with standard white ink being the most cost-effective.

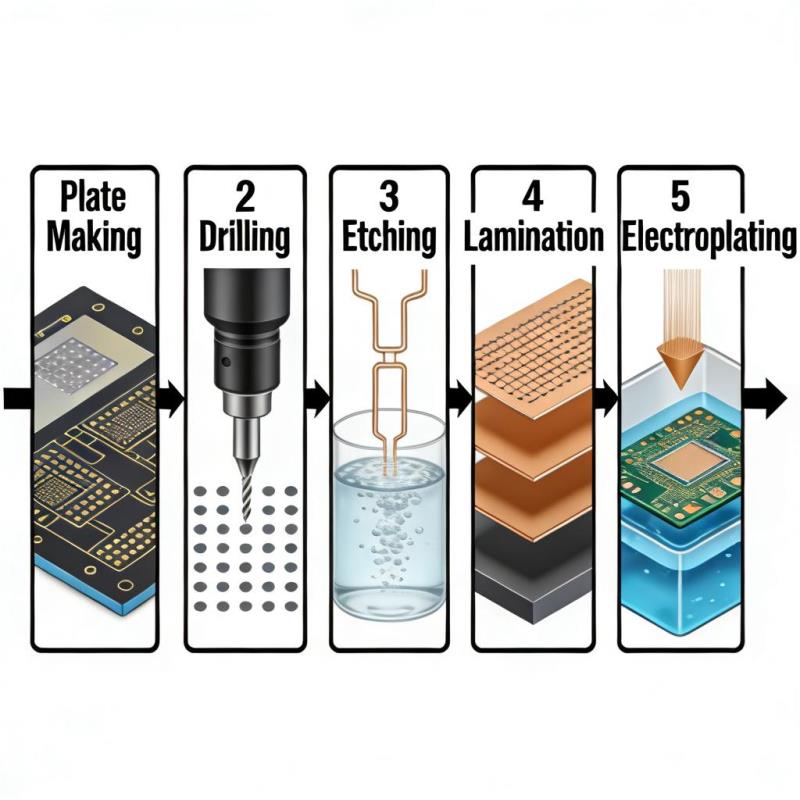

2. Manufacturing Costs

The manufacturing cost accounts for 40-50% of the total PCB cost and includes the cost of the various processes involved in manufacturing the PCB.

• Plate Making: The first step in PCB manufacturing is creating the photolithographic plates used to transfer the circuit pattern onto the substrate. The cost of plate making depends on the number of layers in the PCB, with multi-layer PCBs requiring more plates and thus costing more.

• Drilling: Holes are drilled through the PCB to create vias (plated through-holes) that connect the different layers of the PCB. The cost of drilling depends on the number and size of the holes, as well as the complexity of the drilling pattern. Smaller holes and more holes increase the drilling cost.

• Etching: The etching process removes the unwanted copper from the substrate to create the conductive traces. The cost of etching depends on the complexity of the circuit pattern and the size of the PCB.

• Lamination: For multi-layer PCBs, the individual layers are laminated together under high heat and pressure to form a single, unified structure. The cost of lamination depends on the number of layers and the thickness of the PCB.

• Electroplating: The plated through-holes and pads are electroplated with copper to ensure electrical conductivity between the layers. The cost of electroplating depends on the thickness of the copper plating and the number of vias.

3. Testing Costs

Testing is an essential part of the PCB manufacturing process to ensure that the PCB meets the required specifications and functions correctly. The testing cost accounts for 5-10% of the total PCB cost.

• Flying Probe Testing: This is a common testing method for small-batch or prototype PCBs, where a set of probes moves across the PCB to test the continuity and insulation of the traces. The cost of flying probe testing depends on the number of test points and the complexity of the PCB.

• AOI (Automated Optical Inspection): AOI uses cameras to inspect the PCB for defects such as missing components, solder bridges, and trace defects. The cost of AOI depends on the size and complexity of the PCB.

• Functional Testing: For high-reliability applications, functional testing may be required to test the PCB under actual operating conditions. The cost of functional testing depends on the complexity of the test setup and the time required to perform the test.

4. Logistics Costs

Logistics costs include the cost of packaging, shipping, and handling the PCBs from the manufacturer to the customer. The logistics cost accounts for 5-10% of the total PCB cost.

• Packaging: PCBs are typically packaged in anti-static bags or boxes to protect them from electrostatic discharge (ESD) during shipping. The cost of packaging depends on the size and quantity of the PCBs.

• Shipping: The cost of shipping depends on the weight and size of the shipment, as well as the shipping method (air, sea, or ground). Air shipping is faster but more expensive, while sea shipping is slower but more cost-effective for large shipments.

• Customs and Duties: For international shipments, customs duties and taxes may apply, depending on the destination country and the value of the shipment.

5. Additional Service Costs

Additional service costs may include engineering fees, tooling fees, and expediting fees.

• Engineering Fees: If the manufacturer needs to modify the PCB design or provide design support, engineering fees may apply. The cost of engineering fees depends on the complexity of the design changes.

• Tooling Fees: For some specialized PCBs, tooling fees may apply for the creation of custom fixtures or molds. The cost of tooling fees depends on the complexity of the tooling required.

• Expediting Fees: If you need the PCBs to be manufactured and shipped faster than the standard lead time, expediting fees may apply. The cost of expediting fees depends on the amount of time saved and the complexity of the manufacturing process.

Factors Affecting PCB Quotation

Several factors can affect the final cost of a PCB quotation, including the PCB specifications, order quantity, lead time, and special requirements.

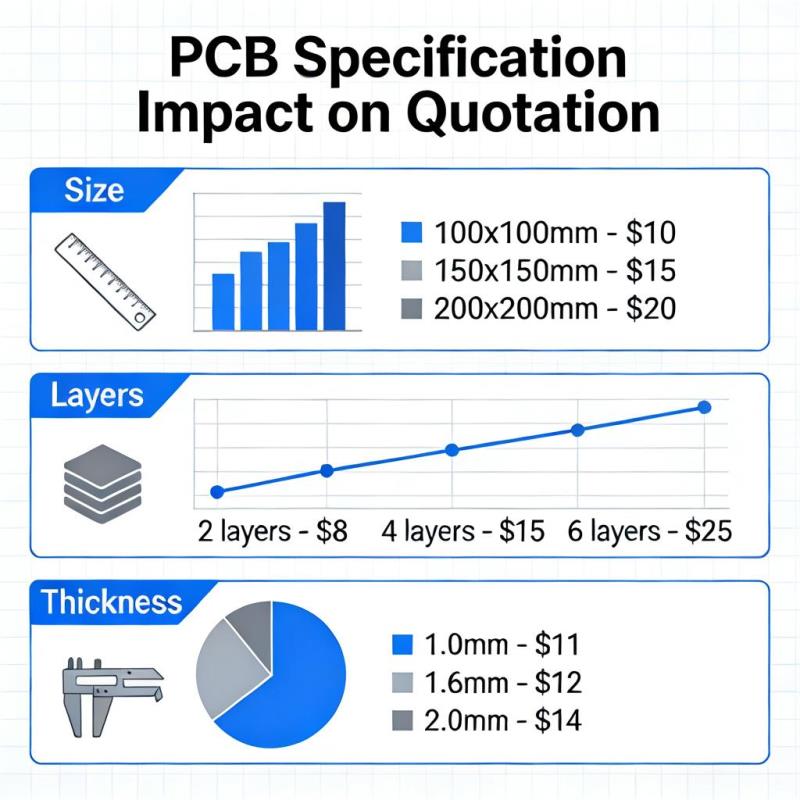

1. PCB Specifications

The PCB specifications, including the size, number of layers, thickness, copper thickness, and surface finish, can significantly affect the cost.

• Size: Larger PCBs require more materials and take longer to manufacture, resulting in higher costs.

• Number of Layers: Multi-layer PCBs are more complex to manufacture and require more materials, resulting in higher costs.

• Thickness: Thicker PCBs require more substrate material and take longer to manufacture, resulting in higher costs.

• Copper Thickness: Thicker copper foil costs more and requires more time to etch and plate, resulting in higher costs.

• Surface Finish: Different surface finishes, such as HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative), have different costs, with ENIG being the most expensive.

2. Order Quantity

The order quantity has a significant impact on the unit cost of the PCB. Larger order quantities benefit from economies of scale, resulting in lower unit costs. For example, the unit cost of a PCB for an order of 1000 pieces may be 30-50% lower than the unit cost for an order of 10 pieces.

3. Lead Time

The lead time, or the time required to manufacture and ship the PCBs, can affect the cost. Expedited orders require the manufacturer to prioritize your order, which may result in higher costs. Standard lead times for PCBs are typically 7-14 days, while expedited lead times can be as short as 1-3 days, but at a higher cost.

4. Special Requirements

Special requirements, such as impedance control, high-temperature resistance, or custom shapes, can increase the cost of the PCB.

• Impedance Control: PCBs used in high-speed digital or RF applications may require impedance control to ensure signal integrity. Impedance control requires precise design and manufacturing processes, resulting in higher costs.

• High-Temperature Resistance: PCBs used in high-temperature applications, such as automotive or aerospace, may require special materials and processes to withstand high temperatures, resulting in higher costs.

• Custom Shapes: PCBs with custom shapes or cutouts require additional tooling and manufacturing processes, resulting in higher costs.

How to Get an Accurate PCB Quotation

To get an accurate PCB quotation, it's important to provide the manufacturer with detailed information about your PCB requirements.

1. Provide Complete Design Files: Include Gerber files, drill files, and a Bill of Materials (BOM) to ensure that the manufacturer has all the information needed to quote your PCB accurately.

2. Specify PCB Specifications: Clearly specify the PCB size, number of layers, thickness, copper thickness, surface finish, and any other specifications.

3. State Order Quantity and Lead Time: Provide the manufacturer with the order quantity and required lead time to ensure that the quotation includes the correct pricing and delivery schedule.

4. List Special Requirements: If your PCB has any special requirements, such as impedance control, high-temperature resistance, or custom shapes, be sure to include these in your request for quotation.

5. Compare Multiple Quotes: Get quotes from multiple PCB manufacturers to compare prices and services. Be sure to compare the total cost, including material costs, manufacturing costs, testing costs, and logistics costs, as well as the lead time and quality of service.

Conclusion

Understanding the components of a PCB quotation is essential for effective cost management and project planning in electronic product development. By breaking down the costs into material costs, manufacturing costs, testing costs, logistics costs, and additional service costs, you can better understand how the final price is determined and identify areas where you can optimize your design for cost efficiency.

When requesting a PCB quotation, be sure to provide the manufacturer with detailed information about your PCB requirements, including design files, specifications, order quantity, lead time, and any special requirements. By comparing multiple quotes and working with a reputable PCB manufacturer, you can ensure that you get a high-quality PCB at a competitive price that meets your project requirements.
