Analyzing the Differences Between Flexible Circuit Boards and Rigid Circuit Boards

Introduction

In the ever-evolving landscape of electronic product development, printed circuit boards (PCBs) serve as the foundational framework that connects and powers electronic components. As electronic devices become smaller, more portable, and more complex, two primary types of PCBs have emerged to meet diverse design requirements: flexible circuit boards (flex PCBs) and rigid circuit boards (rigid PCBs). Understanding the core differences between these two technologies is essential for engineers, product designers, and manufacturers to make informed decisions that align with project goals, performance needs, and budget constraints.

Basic Definitions and Core Structures

Rigid Circuit Boards

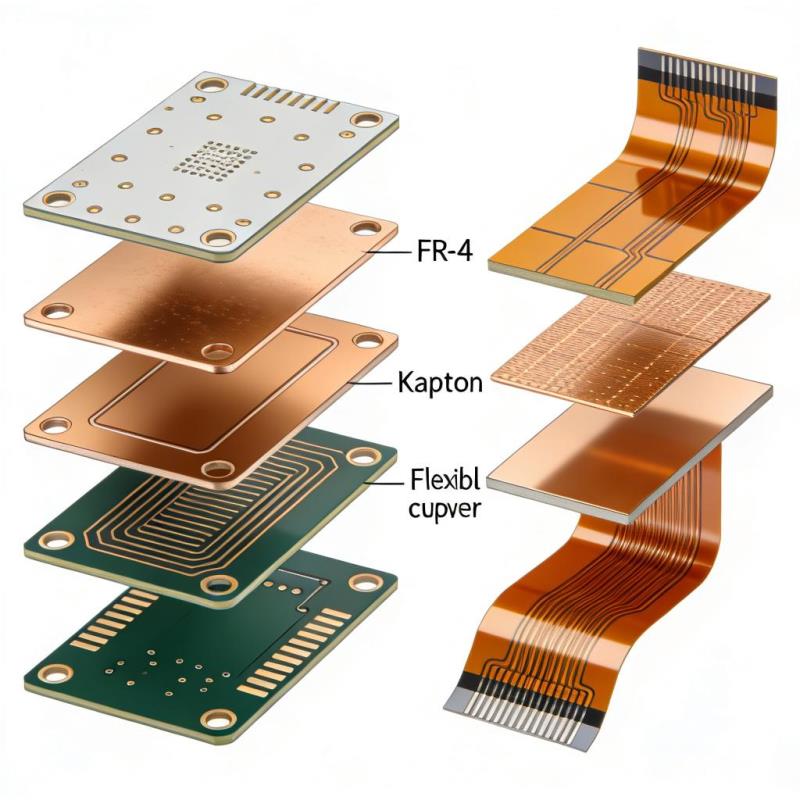

Rigid circuit boards are the most traditional and widely used type of PCB, characterized by their stiff, non-bendable structure. The core substrate material of rigid PCBs is typically FR-4, a fiberglass-reinforced epoxy resin that offers excellent mechanical strength, electrical insulation, and heat resistance. This rigid substrate provides a stable platform for mounting electronic components, ensuring that the board maintains its shape even under mechanical stress.

The structure of a rigid PCB typically includes multiple layers: a base substrate, copper conductive traces, a solder mask layer to protect the traces from corrosion and solder bridging, and a silkscreen layer for labeling components and reference designators. Rigid PCBs can be single-sided (with traces on one side), double-sided (with traces on both sides connected via plated through-holes), or multi-layer (with multiple copper layers separated by insulating substrate layers) to accommodate complex circuit designs.

Flexible Circuit Boards

Flexible circuit boards, also known as flex PCBs, are designed to be bendable, foldable, and twistable, making them ideal for applications where space is limited or the device requires movement. The core substrate material of flex PCBs is a flexible polymer film, such as Kapton (polyimide) or polyester, which offers excellent flexibility, heat resistance, and electrical insulation properties.

The structure of a flex PCB is similar to that of a rigid PCB, but with a thinner substrate and more flexible copper traces. Flex PCBs can be single-sided, double-sided, or multi-layer, and they often include additional layers of adhesive and coverlay to protect the circuit from environmental damage. Some flex PCBs are also designed as rigid-flex PCBs, which combine rigid and flexible sections to provide both stability and flexibility in a single board.

Key Differences Between Flexible and Rigid Circuit Boards

Material Differences

The most significant difference between flexible and rigid circuit boards is the substrate material. Rigid PCBs use FR-4 fiberglass-reinforced epoxy resin, which provides high mechanical strength and stability, while flex PCBs use flexible polymer films, which provide flexibility and resistance to bending.

Other material differences include the thickness of the copper traces: rigid PCBs typically use thicker copper traces (1 oz to 3 oz) to carry higher currents, while flex PCBs use thinner copper traces (0.5 oz to 1 oz) to maintain flexibility. The solder mask and silkscreen layers of flex PCBs are also designed to be more flexible to accommodate bending.

Manufacturing Process Differences

The manufacturing process for flexible and rigid circuit boards also differs significantly. Rigid PCBs are manufactured using standard PCB manufacturing processes, including photolithography, drilling, etching, lamination, and electroplating. The rigid substrate makes it easier to handle and process the board during manufacturing, resulting in lower production costs for high-volume orders.

Flex PCBs require more specialized manufacturing processes due to their flexible substrate. The manufacturing process for flex PCBs includes additional steps such as applying adhesive layers, coverlay layers, and stiffeners to provide support for components. The flexible substrate also requires more careful handling during manufacturing to avoid damage, resulting in higher production costs compared to rigid PCBs.

Performance Differences

Flexible and rigid circuit boards also differ in their performance characteristics. Rigid PCBs offer higher mechanical strength and stability, making them ideal for applications where the board needs to maintain its shape and support heavy components. Rigid PCBs also offer better heat dissipation due to their thicker substrate and copper traces, making them suitable for high-power applications.

Flex PCBs offer excellent flexibility and resistance to bending, making them ideal for applications where the device requires movement or the board needs to fit into a tight space. Flex PCBs also offer better weight reduction and space savings compared to rigid PCBs, making them suitable for portable devices such as smartphones, wearables, and medical devices. However, flex PCBs have lower mechanical strength and are more susceptible to damage from excessive bending or mechanical stress.

Application Differences

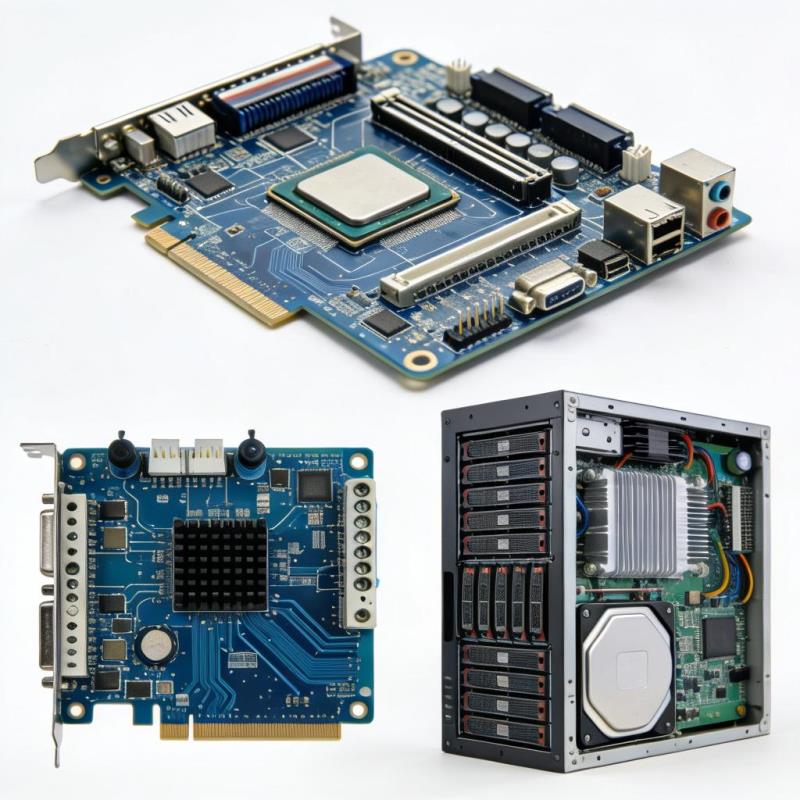

The application differences between flexible and rigid circuit boards are closely tied to their performance characteristics. Rigid PCBs are widely used in a variety of electronic devices, including computers, servers, industrial control equipment, automotive electronics, and consumer electronics such as televisions and audio equipment. Rigid PCBs are also used in high-power applications such as power supplies and motor controllers.

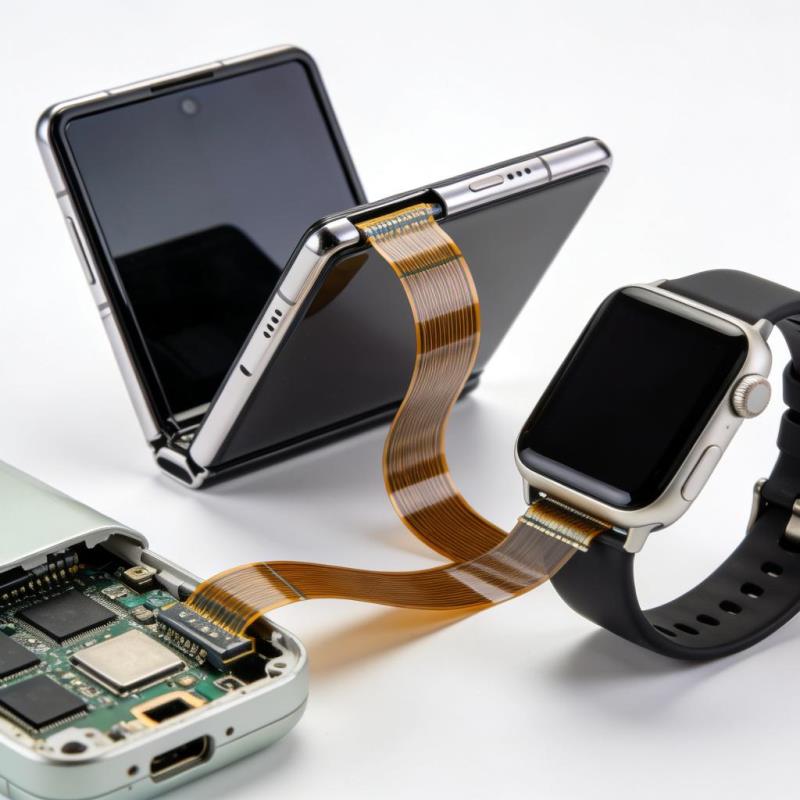

Flex PCBs are used in applications where flexibility and space savings are critical, such as smartphones, wearables, medical devices, aerospace equipment, and automotive electronics. Flex PCBs are also used in applications where the device requires movement, such as cameras, printers, and robotics. Rigid-flex PCBs are used in applications where both stability and flexibility are required, such as foldable smartphones and medical implants.

Cost and Maintenance Differences

The cost of flexible and rigid circuit boards also differs significantly. Rigid PCBs are generally less expensive to manufacture than flex PCBs, especially for high-volume orders. The lower cost of rigid PCBs is due to their simpler manufacturing process and the availability of low-cost substrate materials.

Flex PCBs are more expensive to manufacture than rigid PCBs due to their specialized manufacturing process and the higher cost of flexible substrate materials. The cost of flex PCBs can be 2-5 times higher than the cost of rigid PCBs for the same circuit design. However, the space savings and weight reduction offered by flex PCBs can offset the higher cost in applications where these factors are critical.

In terms of maintenance, rigid PCBs are easier to repair and replace due to their rigid structure and standardized components. Flex PCBs are more difficult to repair due to their flexible structure and specialized components, and they may require more frequent replacement if they are subjected to excessive bending or mechanical stress.

How to Choose Between Flexible and Rigid Circuit Boards

When choosing between flexible and rigid circuit boards, it is important to consider the following factors:

1. Application Requirements: Consider the space constraints, movement requirements, and environmental conditions of the application. If the device requires flexibility or needs to fit into a tight space, a flex PCB may be the best choice. If the device requires stability or needs to support heavy components, a rigid PCB may be the best choice.

2. Performance Requirements: Consider the electrical performance, heat dissipation, and mechanical strength requirements of the application. If the application requires high power or high heat dissipation, a rigid PCB may be the best choice. If the application requires flexibility or weight reduction, a flex PCB may be the best choice.

3. Budget Constraints: Consider the cost of the PCB and the overall budget of the project. If cost is a primary concern, a rigid PCB may be the best choice. If the space savings and weight reduction offered by flex PCBs are critical, the higher cost may be justified.

4. Manufacturing Capabilities: Consider the manufacturing capabilities of the PCB manufacturer. Not all manufacturers have the capabilities to produce flex PCBs, so it is important to choose a manufacturer with experience in producing the type of PCB you need.

Conclusion

Flexible and rigid circuit boards are two essential technologies in electronic product development, each with its own unique advantages and disadvantages. Rigid PCBs offer high mechanical strength, stability, and low cost, making them ideal for a wide range of applications. Flex PCBs offer excellent flexibility, space savings, and weight reduction, making them ideal for portable devices and applications where movement is required.

Understanding the core differences between these two technologies is essential for making informed decisions that align with project goals, performance needs, and budget constraints. By considering the application requirements, performance requirements, budget constraints, and manufacturing capabilities, engineers and product designers can choose the right type of PCB for their project and ensure the success of their electronic product.
