What is DFM in PCB Design? A Complete Guide for Exporters & Startups

20 May 2026 By Jack Liu

Introduction

For international buyers, exporters, and startup teams developing electronic products, understanding Design for Manufacturability (DFM) is one of the most critical steps to ensure your project's success. Whether you're ordering prototypes for product testing or preparing for mass production for global markets, a proper DFM review can save you thousands of dollars in rework costs, avoid costly international shipping delays, and ensure your products meet export quality standards.

________________________________________

What is DFM in PCB Design?

DFM stands for Design for Manufacturability. In PCB design, DFM means designing a printed circuit board in a way that makes it easier, faster, and more reliable to manufacture.
A PCB may look correct in design software, but that does not always mean it can be produced smoothly. Small design choices, such as trace width, hole size, component spacing, solder mask clearance, or board shape, can affect manufacturing yield, cost, and lead time. DFM helps identify these issues before production begins.
For beginners and international buyers alike, the simplest way to understand DFM is this: DFM is the process of checking whether your PCB design can be manufactured correctly and economically by a real factory, matching their specific production capabilities.
A good PCB design is not only electrically functional. It also needs to match the manufacturer’s fabrication and assembly capabilities. When DFM is ignored, the result may be production delays, higher costs, rework, poor soldering, or even unusable boards. For exporters, these issues are even more costly, as they can lead to international shipping fees, customs delays, and missed product launch deadlines.

________________________________________

Why is DFM Important in PCB Design?

DFM is important because most PCB problems are cheaper to fix before manufacturing than after production has started. Once Gerber files are released and the board enters fabrication, every design mistake becomes more expensive.
For example, if a trace is too narrow for the selected copper thickness, the factory may need to hold the order and ask for design changes. If component pads are too close together, solder bridging may occur during assembly. If holes are too small, drilling may become difficult or unreliable. These problems can delay delivery and increase cost.
For exporters shipping PCBs and PCBA products to North America, Europe, and other global markets, the stakes are even higher. Unlike local manufacturers, international orders face additional costs if issues arise: international return shipping, customs duties on reworked parts, and extended lead times that can push your product launch back by weeks or even months. A professional DFM check eliminates these risks by catching issues before your order enters production.
DFM helps prevent these issues by reviewing the design from a manufacturing perspective. It allows engineers, buyers, startups, and product developers to find possible risks early. For prototype projects, DFM can help reduce the chance of first-run failure. For mass production, DFM can improve yield and make each board more consistent.
In short, DFM improves three major areas: quality, cost, and delivery time. This is especially valuable for exporters who need consistent, fast turnaround to meet their customers' demands.

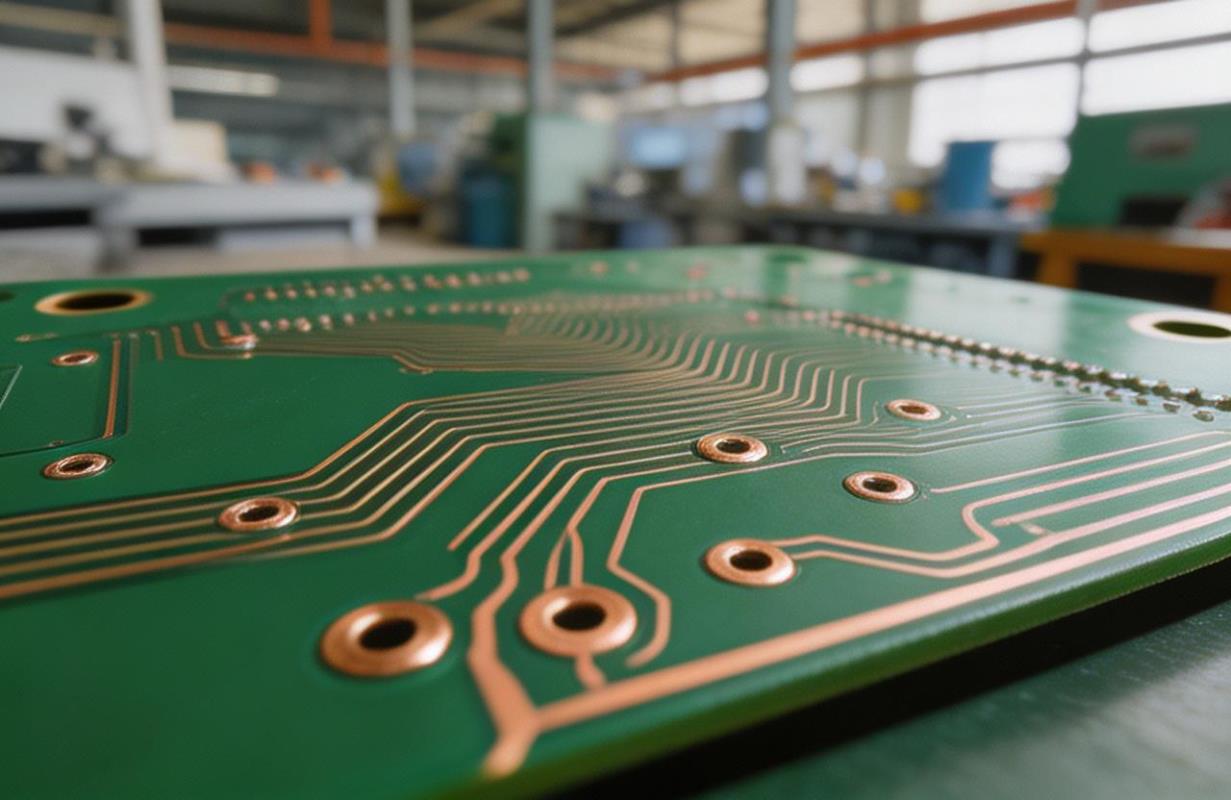

DFM important in PCB design

________________________________________

DFM vs DFA vs DFT: What is the Difference?

Beginners and international buyers often see similar terms such as DFM, DFA, and DFT. They are related, but they focus on different parts of the product development process.
• DFM, or Design for Manufacturability, focuses on whether the bare PCB can be fabricated efficiently. It includes board thickness, copper weight, trace width, spacing, hole size, solder mask, surface finish, and panelization.
• DFA, or Design for Assembly, focuses on whether components can be assembled onto the PCB easily and reliably. It includes component spacing, footprint accuracy, polarity marking, pick-and-place requirements, soldering process, and reflow considerations.
• DFT, or Design for Testability, focuses on whether the finished PCBA can be tested efficiently. It includes test points, probe access, programming connectors, functional test planning, and inspection requirements.
A complete PCB project should consider all three. However, DFM is usually one of the first checks because the bare board must be manufacturable before assembly and testing can succeed.

________________________________________

Key Areas of PCB DFM

1. Board Size and Shape

The size and shape of a PCB can affect cost and production difficulty. Simple rectangular boards are usually easier to manufacture and panelize. Irregular shapes, sharp internal corners, slots, cutouts, or complex routing paths may increase processing time.
This does not mean every PCB must be rectangular. Many products require special shapes because of enclosure or mechanical constraints. However, beginners should avoid unnecessary complexity. If a board shape can be simplified without affecting the product, it may reduce manufacturing cost and improve yield.
It is also important to confirm the manufacturer’s minimum routing width, slot size, and tolerance before finalizing the design.

2. Layer Count and Stackup

Layer count is one of the biggest cost factors in PCB manufacturing. A two-layer PCB is usually cheaper than a four-layer PCB, and a four-layer PCB is usually cheaper than a six-layer or eight-layer PCB.
However, choosing the lowest layer count is not always the best decision. A board with too few layers may become difficult to route, may have poor signal integrity, or may create EMI problems. The goal of DFM is to choose a stackup that balances cost, performance, and manufacturability.
For beginner projects, two-layer boards are common for simple circuits. Four-layer boards are often used when better power distribution, ground planes, and signal performance are needed.

3. Trace Width and Spacing

Trace width and spacing are basic but critical DFM items. If traces are too narrow or spacing is too tight, the PCB becomes more difficult to manufacture. This may increase cost or reduce yield.
Trace width should be selected based on current requirements, copper thickness, and manufacturing capability. Spacing should consider voltage, signal type, and process limits. Beginners should avoid using extremely small trace and space values unless the design truly requires them.
A practical approach is to use standard design rules from the PCB manufacturer. Staying within standard capabilities usually reduces cost and avoids unnecessary production risk. This is one of the key ways to reduce PCB manufacturing cost for your international orders.

4. Drill Holes and Via Design

Drilling is another major part of PCB fabrication. Every plated through hole, via, and mounting hole must be drilled accurately. Very small holes, excessive via counts, or unusual hole sizes can increase manufacturing difficulty.
For cost-effective DFM, use standard drill sizes whenever possible. Avoid using too many different hole sizes unless necessary. Make sure vias have enough annular ring, which is the copper area around the drilled hole. If the annular ring is too small, the hole may not connect reliably to the copper pad.
Blind vias, buried vias, and microvias can be useful in advanced designs, but they usually add cost. Beginners should use regular through-hole vias unless there is a strong reason to use advanced via structures.

5. Copper Clearance and Copper-to-Edge Distance

Copper features should not be placed too close to the board edge. During routing or V-cut processing, copper near the edge may be exposed, damaged, or create reliability concerns.
DFM checks usually include copper-to-edge clearance, copper spacing around slots, and clearance near mounting holes. These details are easy to overlook in design software but can matter during real production.
Good clearance rules help prevent shorts, exposed copper, and mechanical damage. They also make the board easier to process during panel separation.

6. Solder Mask Design

Solder mask is the protective layer that covers copper areas and helps prevent solder bridges. Poor solder mask design can cause assembly defects, especially on fine-pitch components.
For DFM, pads should have proper solder mask openings. The mask web between pads should not be too narrow. If the solder mask bridge is too small, it may not be manufacturable, and solder bridging risk may increase.
Beginners should pay special attention to ICs, connectors, QFN packages, and small passive components. Correct solder mask settings can make assembly much more reliable.

7. Silkscreen and Marking

Silkscreen is used for component labels, polarity marks, logos, version numbers, and assembly guidance. Although silkscreen may seem less important than copper or solder mask, it still affects manufacturing and assembly.
Text should not overlap pads or exposed copper. Polarity marks for diodes, LEDs, electrolytic capacitors, and ICs should be clear. Reference designators should be readable after assembly when possible.
Good silkscreen reduces assembly confusion and helps with inspection, repair, and future maintenance. This is especially important for exporters who need to ensure their products can be serviced globally.

8. Component Footprints

Incorrect component footprints are one of the most common PCB design problems. A circuit can be electrically correct but still fail if the component pads do not match the real part.
DFM should include footprint verification. Pad size, pitch, orientation, courtyard, polarity, and package dimensions should match the component datasheet. For assembly, there should be enough spacing between components for pick-and-place machines, soldering, inspection, and rework.
Beginners should be careful when downloading footprints from online libraries. Always compare them with the official datasheet before sending the design to production.

9. Panelization

Panelization means arranging one or more PCB designs on a larger manufacturing panel. Good panelization improves material usage, assembly efficiency, and handling.
Small PCBs are often difficult to assemble one by one, so they are placed in a panel with breakaway tabs or V-cuts. The panel may also include tooling holes, fiducial marks, and rails for automated equipment.
DFM review can help decide the best panel layout. A good panel design can reduce waste, improve assembly speed, and lower unit cost.

10. Complete Manufacturing Files

Even a well-designed PCB can be delayed if the manufacturing files are incomplete or unclear. A typical PCB order may require Gerber files, drill files, board outline, stackup information, material requirements, copper weight, surface finish, solder mask color, silkscreen color, and special notes.
For PCBA projects, additional files may include BOM, pick-and-place file, assembly drawing, test requirements, and programming instructions. These files are critical for accurate PCB quotation and smooth production.
Before production, beginners should review all files carefully. Missing or conflicting information may cause engineering questions and delay the order.

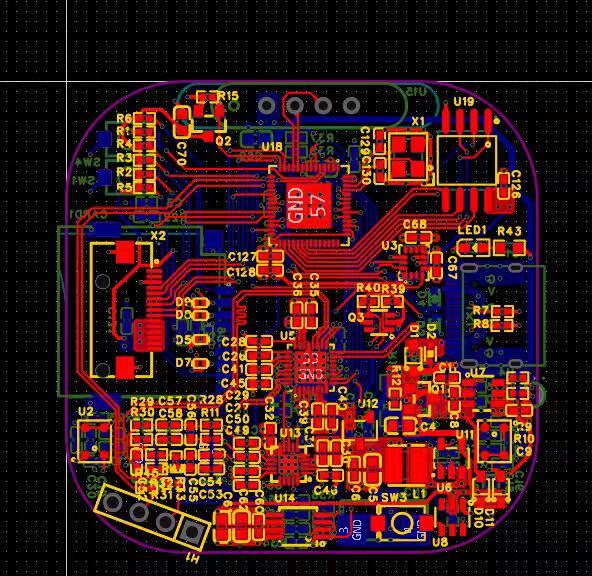

PCB layout

________________________________________

Common DFM Mistakes Beginners Should Avoid

Many beginner PCB designers and first-time international buyers make similar mistakes. These include using design rules that are too aggressive, placing components too close together, forgetting enough copper clearance, using incorrect footprints, missing polarity marks, and sending incomplete files.
Another common mistake is designing without checking the manufacturer’s capabilities. Different PCB factories may have different standard and advanced process limits. A design that is easy for one factory may be expensive or difficult for another. This is especially important for international buyers who may be working with overseas manufacturers for the first time.

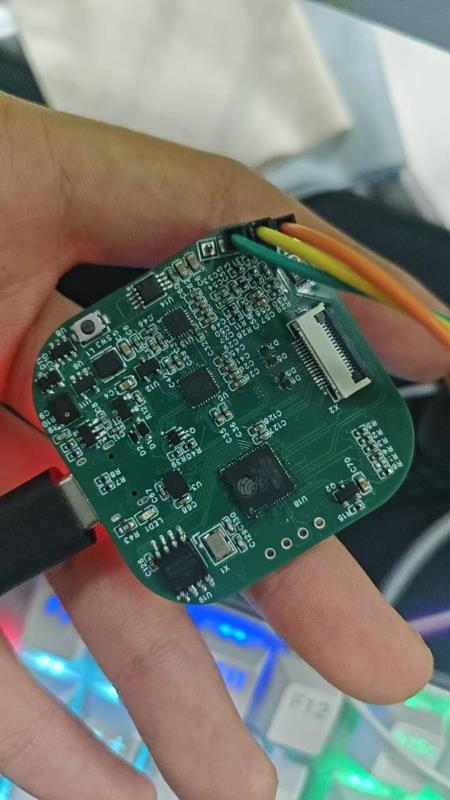

PCBA sample

The best habit is to check manufacturing capability before finishing the layout. This saves time and helps avoid redesign. For startups working on PCBA prototype service, this step can help you get your first prototype right the first time, avoiding costly rework.

________________________________________

When Should You Do a DFM Check?

A DFM check should be done before PCB fabrication, but it is even better to think about DFM during the design stage. Do not wait until the layout is finished to consider manufacturability.
For new designs, a basic DFM review should happen after the first layout is complete. A final DFM review should happen before releasing files to the manufacturer. For complex boards, it is helpful to discuss the stackup, impedance, material, and special requirements with the PCB manufacturer before routing begins.
At Allwin PCBA, DFM review is an important part of helping customers reduce avoidable production issues before PCB fabrication and assembly. We provide free DFM checks for all orders, helping international exporters and startups ensure their designs are optimized for our manufacturing capabilities, ensuring fast turnaround and export-ready quality. This is part of our comprehensive PCBA quality control checklist for exporters to ensure your products meet global standards.

________________________________________

Simple PCB DFM Checklist for Beginners

Before sending your PCB files to production, check these points:
• Make sure the board outline is clear.
• Confirm the layer count and stackup.
• Use trace width and spacing that match standard manufacturing capability.
• Check drill sizes and annular rings.
• Keep copper away from the board edge.
• Verify solder mask openings.
• Make silkscreen readable and avoid placing text on pads.
• Confirm all component footprints with datasheets.
• Add fiducials and tooling holes if needed for assembly.
• Prepare complete Gerber, drill, BOM, and pick-and-place files.
This simple checklist cannot replace a professional engineering review, but it can help beginners avoid many common mistakes. For more complex projects, we recommend working with your manufacturer to conduct a full DFM review before production.

________________________________________

FAQ: DFM in PCB Design

Is DFM only needed for mass production?

No. DFM is useful for both prototypes and mass production. For prototypes, it helps prevent basic manufacturing errors that could delay your testing phase. For mass production, it helps improve yield, reduce cost, and make quality more consistent. This is especially valuable for startups who need fast prototype turnaround to test their products.

Can PCB design software replace DFM review?

PCB design software can check many design rule violations, but it cannot fully replace a manufacturer’s DFM review. Software may not understand all factory process limits, assembly requirements, or real production risks. A professional engineer from your manufacturer can provide insights based on years of production experience.

Does DFM increase design time?

DFM may add some review time at the beginning, but it usually saves more time later. Finding a problem before production is much faster and cheaper than fixing it after boards are made. For international orders, this can save weeks of delay and thousands of dollars in shipping and rework costs.

Who should be responsible for DFM?

Both the designer and the manufacturer should be involved. The designer should follow good layout rules, and the manufacturer should review the files based on actual production capability. At Allwin PCBA, we work closely with our customers to ensure their designs are optimized for our production process.

________________________________________

Conclusion

DFM in PCB design means designing a board so it can be manufactured reliably, efficiently, and economically. For beginners, exporters, and startups, DFM may sound technical, but the basic idea is simple: do not only design for electrical function; design for real-world production.
By paying attention to board shape, layer count, trace width, spacing, holes, solder mask, footprints, panelization, and manufacturing files, you can reduce errors and improve PCB quality. A strong DFM process helps avoid delays, lower unnecessary costs, and make your PCB project more successful from prototype to production.
For international buyers and exporters, working with a manufacturer that provides professional DFM reviews is one of the best investments you can make. It ensures your products are export-ready, meet global quality standards, and can be delivered on time to your customers around the world.
If you're ready to start your next PCB or PCBA project, contact Allwin PCBA today. Our engineering team will provide a free DFM review to help you optimize your design for fast, cost-effective production.
