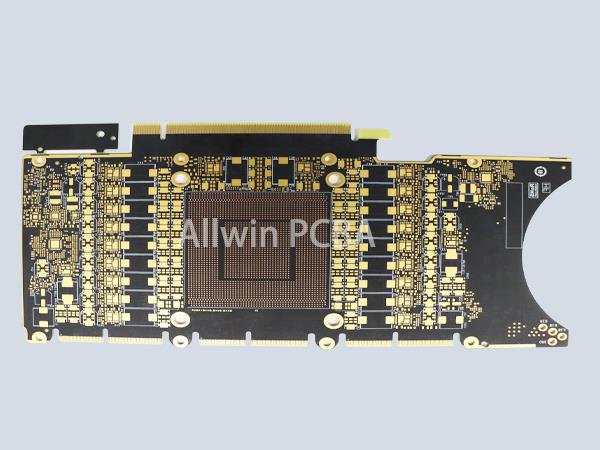

12-layer goldfinger GPU PCB Custom High Frequency Printed Circuit Board
Base Material: FR4 TU872
Number Of Layers: 12-layer
Product Specification:
| No. | Category | Details |
| 1 | Product Name |
12-layer goldfinger GPU PCB |
| 2 | Base Material | FR4 TU872 |
| 3 | Number Of Layers | 12-layer |
| 4 | Board Thickness | 1.6mm |
| 5 | Copper Thickness | 1oz |
| 6 | Min. Hole Size | 0.1mm |
| 7 | Minimum Line Spacing | 0.066mm |
| 8 | Minimum Line Width |
0.066mm |
| 9 | Solder Mask | Black |
| 10 |
Surface Finish |
Immersion Gold + Gold Finger |
| 11 |
Silkscreen |
White |
Our Advantages:
( With more than ten years of PCB fabrication and assembly experience）1. We have our own PCB circuit board and SMT assembly factory
2. One-on-one assistance, Smooth shopping experience
3. Free DFM and Electrical test & components cost-down
4. We will refund if the PCB quality is not good as described or is with defects
5. Certification: 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001
High Frequency PCB Manufacturing Capabilities:
| No. | Category | High-Frequency PCB Capabilities |
| 1 | Material |
RO4003C, RO4350B, Ro3003, Ro3010, RT5880 |
| 2 | Number of Layers | 1-40 Layers |
| 3 |
Min. Track/Spacing |
2mil |
| 4 |
Min. Hole Size |
0.15mm |
| 5 |
Board Thickness |
0.3-3.1mm |
| 6 |
Finish Cooper |
0.6-12oz |
| 7 |
Silkscreen |
Green, Red, Yellow, White, Black, Blue, Purple |
| 8 |
Via Process |
Tenting Vias,Plugged Vias,Vias not covered |
| 9 |
Testing |
Fly Probe Testing (Free) and A.O.I. testing |
| 10 |
Surface Finishing |
HASL, HASL lead free, Immersion gold(ENIG), Immersion Tin, OSP, Immersion Silver(Ag) |
| 11 |
Solder Mask |
Green, Red, Yellow, White, Black, Blue, Purple |
| 12 |
Build Time |
8-11 days |
| 13 | Delivery Time |
3-4 days |
PCB Application:
PACKAGE & DELIVERY：
1,What files are necessary for us to assembly PCBs for you?
1.1 PCB files(Gerber files)
1.2 BOM(Bill of components)
1.3 Cendroid files/Pick&place files)
1.4 Assembly drawings
In order to ensure the quality, BOM files must be clearly noted specific part number,Brand required.it’s very important for us to purchase right components for your project.
2. Is there a minimum order quantity?
There is no MOQ in AllWinPcba.
3. Shipping Cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
4. Which payment terms do you accept?
we usually accept the following payment terms T/T, western union, money gram, Paypal, and if a Larger amount, we also accept L/C and so on. you can also tell us about your payment way!
Choose AllwinPCBA for your High Frequency PCB
AllwinPCBA provides one-to-one service to better suit your need of high frequency PCB manufacturing. We welcome your inquiry about our high frequency PCB: svc@allwinpcba.com
High Frequency PCB Online Quote
-
