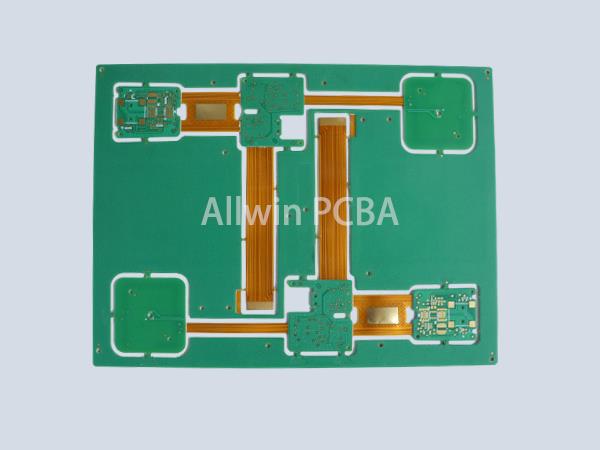

6-layer Electronic PCB Rigid-Flex PCB Circuit Board Assembly Custom Rigid Flexible PCB Product
Base Material: FPC fr4
Number of Layers: 6-layer
Product Specification:
| No. | Category | Details |
| 1 | Product Name | 6-layer Electronic PCB Rigid-Flex PCB |
| 2 | Base Material | FPC fr4 |
| 3 | Number of Layers | 6-layer |
| 4 | Copper Thickness | 1oz |
| 5 | Board Thickness | 1.5mm |
| 6 | Min. Hole Size | 0.15mm |
| 7 | Minimum Line Width | 0.075 |
| 8 | Minimum Line Spacing | 0.075 |
| 9 | Solder Mask | Green |
| 10 | Surface Finish | Immersion Gold |
| 11 | Silkscreen | White |
Our Advantages:
( With more than ten years of PCB fabrication and assembly experience）1. We have our own PCB circuit board and SMT assembly factory
2. One-on-one assistance, Smooth shopping experience
3. Free DFM and Electrical test & components cost-down
4. We will refund if the PCB quality is not good as described or is with defects
5. Certification: 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001
Check the manufacturing capabilities of the rigid-flex PCB from AllWinPcba:
|
Category |
Process Capability |
| PCB Type | Rigid-flex PCB |
| layer Count | 2 layers, 3 layers, 4 layers, 6 layers, 8 layers |
| Material | Polyimide Flex+Fr4 |
| Quality Grade | Standard IPC 2 |
| Min Tracing / Spacing |
≥4mil |
| Min. Hole Size |
≥0.15mm |
| Board Thickness |
0.4~3.2mm |
| Surface Finish |
Immersion Gold (ENIG), OSP, Immersion Silver |
Please check the manufacturing capabilities of the Flexible PCB from AllwinPCBA:
|
Category |
Capability |
Details |
|
Board Size |
Min（pcs） |
1*0.5mm |
|
Max (Pnl Size) |
250*1200mm |
|
|
Base Material Thickness |
— |
0.06——0.3mm |
|
Board Thickness |
— |
0.1-0.5mm |
|
Base Copper Thickness |
— |
1/3OZ——2OZ |
|
PTH Hole Wall Copper Thickness |
— |
8-20μm |
|
Blind Hole Filling Capacity Aspect Ratio (Hole Size: Hole Depth) |
— |
01:10:00 |
|
Blind Hole Filling Capacity (Hole Size) |
— |
50-150μm |
|
Single Line Impedance Tolerance |
— |
±10% |
|
Differential Impedance Tolerance |
— |
±10% |
|
Min Track/Spacing (Double Layers Board) |
Surface Copper Thickness：8-14μm |
40/40 um |
|
Surface Copper Thickness：15-20μm |
45/45 um |
|
|
Surface Copper Thickness：21-30μm |
55/55 um |
|
|
Surface Copper Thickness：31-40μm |
75/75 um |
|
|
Surface Copper Thickness：≥40μm |
80/80 um |
|
|
Line Width Tolerance |
Line Width≤0.050mm |
±.02mm |
|
0.05mm＜Line Width≤0.15mm |
±20% |
|
|
Line Width＞0.150mm |
±10% |
|
|
Silkscreen |
Silkscreen Character Min Width/Spacing |
4mil |
|
Solder Mask |
Green Solder Mask Thickness Range |
10~30 μm |
|
Related Capacity |
Dimension Tolerance from Line Edge to Plate Edge |
±0.25 mm |
PCB Application:
PACKAGE & DELIVERY：
1,What files are necessary for us to assembly PCBs for you?
1.1 PCB files(Gerber files)
1.2 BOM(Bill of components)
1.3 Cendroid files/Pick&place files)
1.4 Assembly drawings
In order to ensure the quality, BOM files must be clearly noted specific part number,Brand required.it’s very important for us to purchase right components for your project.
2. Is there a minimum order quantity?
There is no MOQ in AllWinPcba.
3. Shipping Cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
4. Which payment terms do you accept?
we usually accept the following payment terms T/T, western union, money gram, Paypal, and if a Larger amount, we also accept L/C and so on. you can also tell us about your payment way!
Choose AllwinPCBA for your Rigid-Flex PCB
AllwinPCBA provides a one stop solution for all of your electronic manufacturing requirements with our experienced team and state-of-the-art assembly equipment under one roof in an inexpensive way, ranging from fast turnaround prototyping to high volume manufacturing. We have the capability to identify design and production issues during the prototype stage and solve these (in consultation with you) before mass production. Our turnkey or consigned printed circuit board assembly service is ISO ISO9001:2015-certified and RoHS compliant. We handle SMD, through-hole and mixed assembly projects. Look forward to cooperating with you, welcome your inquiry: svc@allwinpcba.com
-
