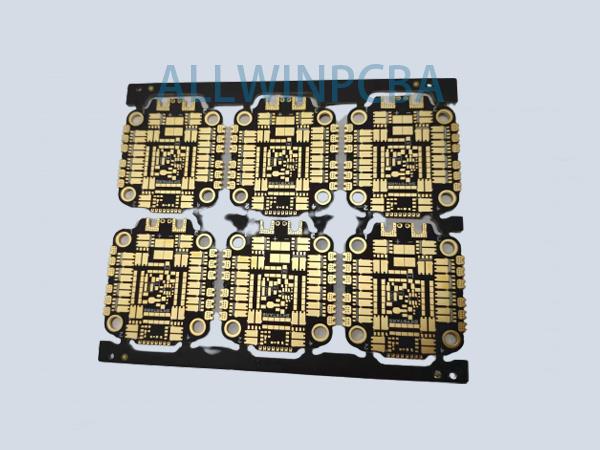

8-layers UAV HDI PCB
Product Specification:
| No. | Category | Details |
| 1 |
Base Material |
FR-4 |
| 2 |
Number of Layers |
8-layers |
| 3 |
Board Thickness |
1.6mm |
| 4 |
Minimum Line Width / Spacing (Outer layer) |
0.2mm |
| 5 |
Minimum Line Width / Spacing (inner layer) |
0.2mm |
| 6 |
Min. Hole Size |
0.15mm |
| 7 |
Surface Finish |
Immersion Gold |
| 8 |
Solder Mask |
Black |
Our Advantages:
( With more than ten years of PCB fabrication and assembly experience）1. We have our own PCB circuit board and SMT assembly factory
2. One-on-one assistance, Smooth shopping experience
3. Free DFM and Electrical test & components cost-down
4. We will refund if the PCB quality is not good as described or is with defects
5. Certification: 94v-0, CE, SGS, FCC, UL, RoHS, ISO9001:2008, ISO14001
Check ALLWINPCBA HDI PCB manufacturing capabilities in the following table:
| Feature | Capability |
| Number of Layers | 4-30 layer |
| Quality Grade | IPC 6012 Class 2,IPC 6012 Class 3 |
| Material | Tg 140°C FR4,Tg 150°C FR4,Tg 170°C FR4 ,Special material |
| Thickness | 0.4-6.0mm |
| Min Track/Spacing |
Inner layer: Part 2 / 2mil, overall 3 / 3mil (H/H OZ base copper) Outer layer: Part 2.5/2.5mil, overall 3 / 3mil(H/H OZ base copper) |
| Min Hole Size | 0.15mm-0.3mm |
| Solder Mask | Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green |
| Silkscreen | White, Black,Yellow,Blue |
| Surface Finish | Immersion gold,OSP,Hard gold,Immersion Silver |
| Finished Copper | 0.5-13oz |
| Build time | 5-10 days |
|
Lead time |
2-3 days |
PCB Application:
PCB FAQ:
1,What files are necessary for us to assembly PCBs for you?
1.1 PCB files(Gerber files)
1.2 BOM(Bill of components)
1.3 Cendroid files/Pick&place files)
1.4 Assembly drawings
In order to ensure the quality, BOM files must be clearly noted specific part number,Brand required.it’s very important for us to purchase right components for your project.
2. Is there a minimum order quantity?
There is no MOQ in AllWinPcba.
3. Shipping Cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
4. Which payment terms do you accept?
we usually accept the following payment terms T/T, western union, money gram, Paypal, and if a Larger amount, we also accept L/C and so on. you can also tell us about your payment way!
Choose AllWinPcba for your HDI PCB
AllWinPcba provides a one stop solution for all of your electronic manufacturing requirements with our experienced team and state-of-the-art assembly equipments under one roof in an inexpensive way, ranging from fast turnaround prototyping to high volume manufacturing. We have the capability to identify design and production issues during the prototype stage and solve these (in consultation with you) before mass production. Our turnkey or consigned printed circuit board assembly service is ISO ISO9001:2015-certified and RoHS compliant. We handle SMD, through-hole and mixed assembly projects. Look forward to cooperating with you, welcome your inquiry: svc@allwinpcba.com
More information check here:HDI PCB Instant Online Quote
-
6-layer 2nd-order HDI PCB Custom Oem Odm PCB Manufacturer In China
Product Name: 6-layer 2nd-order HDI PCB. Product Material: FR4. Number of Layers: 6-layer 2nd-order
-
10-Layers HDI Board
Product Specification Items Capabilities Base MaterialFR-4 (+RCC)Number of Layers10 LayersBoard Thickness1.6 mmMinimum Line Width / Spacing (Outer layer)0.1mm/0.1mm Minimum Line Width /Spacing (Inner layer)0.075mm / 0.075mmMin. Hole Size0.125Surface F…
